Magnetic card door lock systems

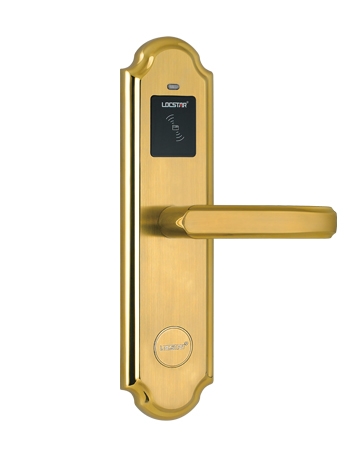

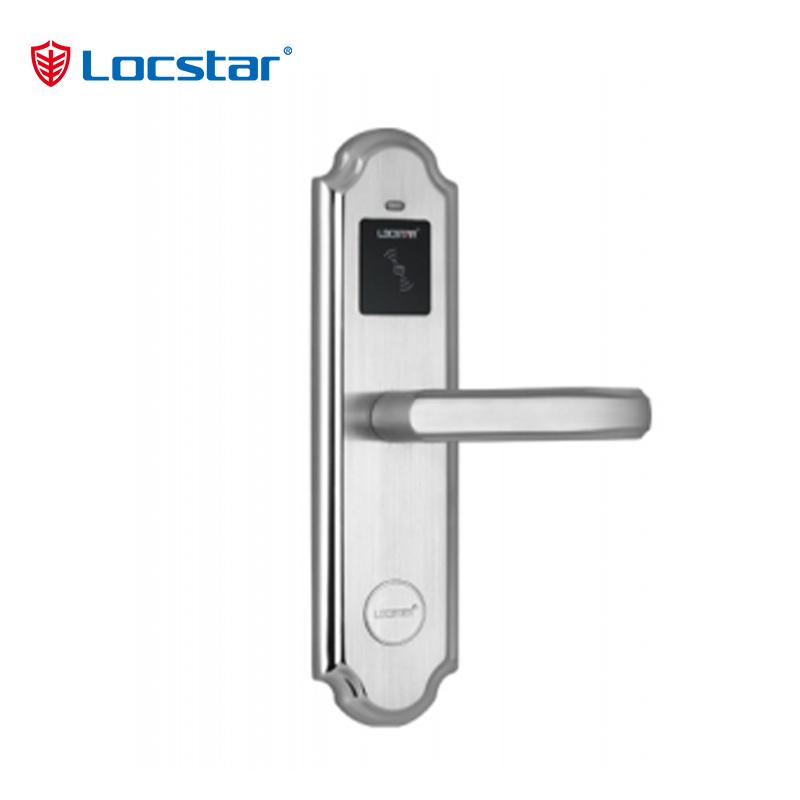

The stainless steel intelligent lock is classic and durable lock,simple shape,high quality stainless steel lock panel.let this lock display simple but durable.8105 series applied for high-end star hotel,seaview hotel,hospital,school.
 1. Unlocking by RFID card + mechanical key in emergency
 2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz
 3. Material: SUS304 stainless steel
 4. Powered by 4pcs AA Alkaline battery
 5. Battery life: approx 1 year
 6. Low voltage alarm
 7. Door ajar alert
 8. DND (Do not disturb) function available
 9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc
 10. Hidden cylinder
 11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector
 12. Warranty: 2 years, lifetime maintenance
 13. Hotel software interface with other PMS (API / SDK can be provided)

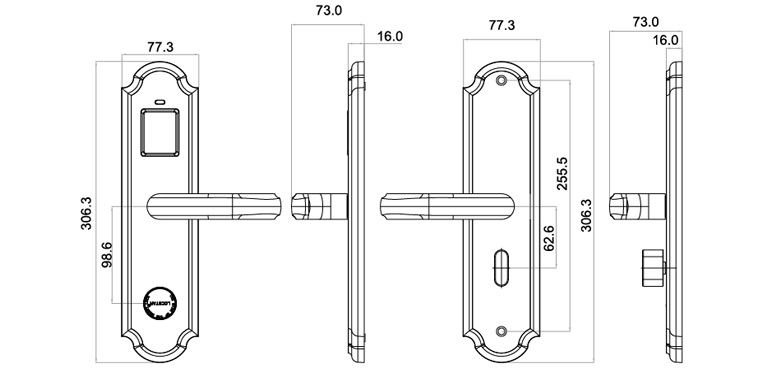

 14. Panel size:W76.6*H305*D72mm

LS-8105 smart security lock technical parameter:

Mortise:

1. 8# ANSI standard,five lock tongue three linkage lock body

2.9# Euro stand,five lock tongue three linkage lock body

Packing:

 Each piece packed in white box
 6PCS/CTN
 18.4kg/CTN
 Carton size: L410 x W340 x H510 (mm)
 Volumes: 0.07 m3 / ctn
