LS-8088 RFID Hotel Door Lock

Product：Hotel door lock system using rfid card

stainless steel hotel door locks With mifare card

Item no.:
LS-8088
ITEM NO:
LS-8088-RFID
Unlocking ways:
RFID card +mechnical key
Material:
SUS304
Certificate:
FCC,CE
Mortise:
8#ANSI , 9#Euro
Color:
Silver , Golden
Warranty:
2years
Payment term:
T/T,Western Union,Paypal
Weight:
2.9Kg

Inquiry now

Product Detail
Technical Parameters
Other Information

hotel card reader door locks

LS-8088 electronic hotel lock technical parameter:

Lock type	RF card lock
Electronic key	NXP Mifare One S50	ATMEL T5557
	Mifare card	Temic card
International Standard	ISO14443-A	ISO11784/785
Static current	≤25uA	≤15uA
Dynamic current	≤200uA
Power Supply	4×AA
Low―voltage Index	5.0V(±0.2)
Battery life	≥10000times
Mechanical life	≥100000times
Reliability	≥30000times
Weight	3.0Kg
Working temperature	-20℃~55℃
Storage temperature	-30℃ ~ 70℃
Working humidity	15%RH ~ 90%RH

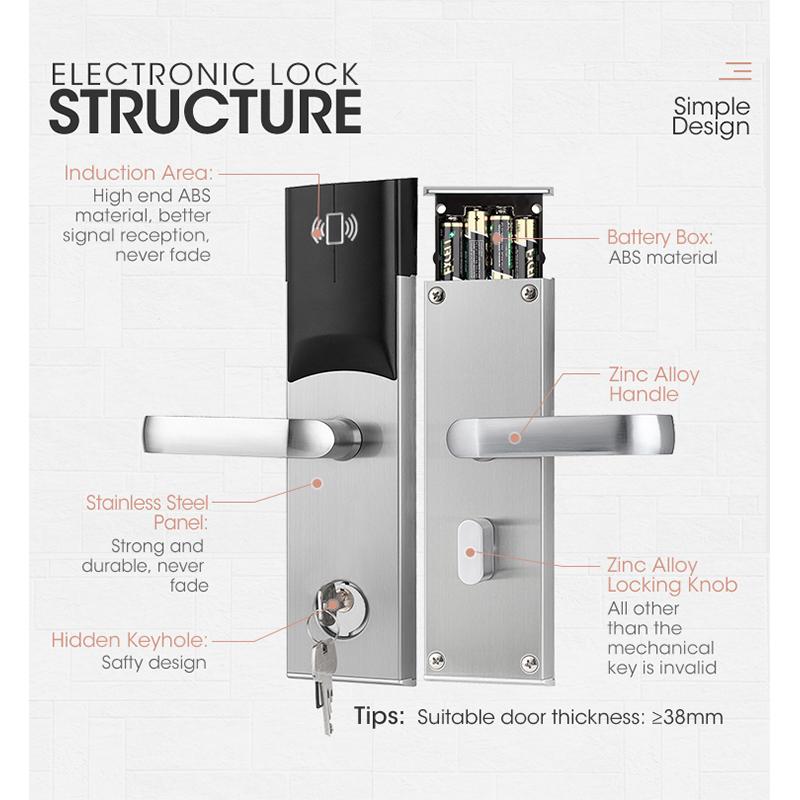

LCOSTAR hotel lock(LS-8088),can unlock by key card and mechanical key. support different management requirement, such as building card/floor card/maid zoon card management/ foreman card/front desk card and so on. also supply full set accessories to work together, encoder/energy saver/printing card/data collector.

1. Unlocking by RFID card + mechanical key in emergency

2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz

3. Material: SUS304 stainless steel

4. Powered by 4pcs AA Alkaline battery，Battery life: approx 1 year

5. Low voltage alarm， Door ajar alert

6. DND (Do not disturb) function available

7. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc

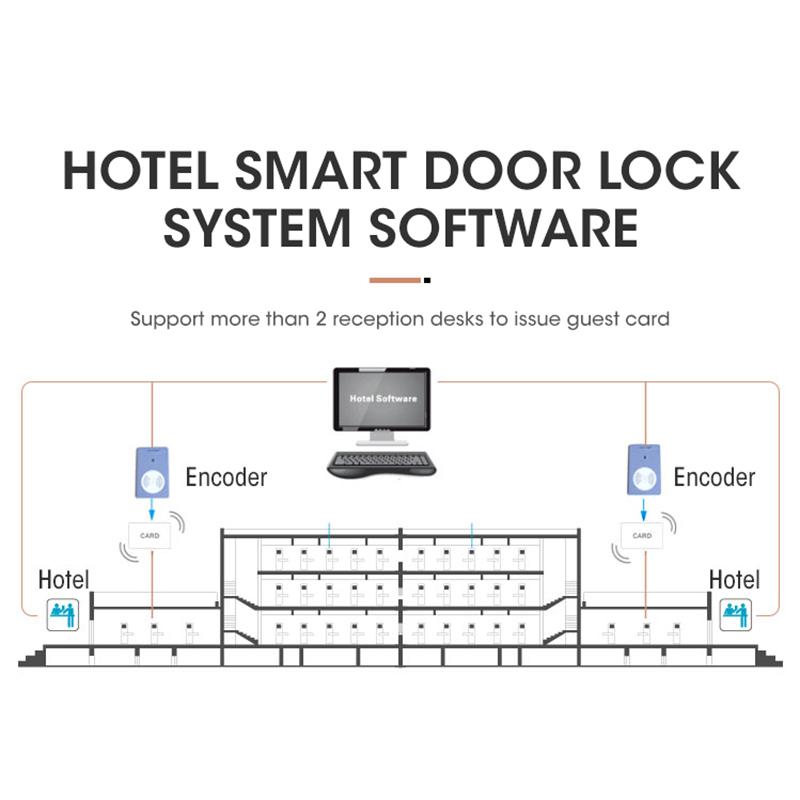

8. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector, click to get more information about Hotel smart door lock system.

9. Hotel software interface with other PMS (API / SDK can be provided)，Future proof re-programmable FL .ASH RAM lock memory.

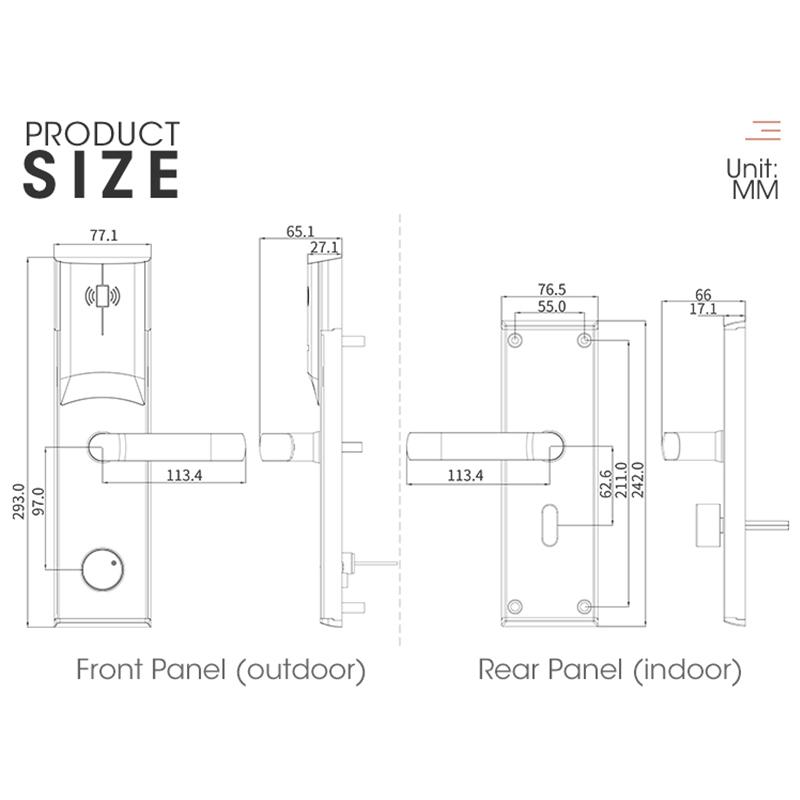

10. Front panel size:W77.1*H293*D65.1mm,back panel size:W76.5*H242*D66mm

11. Stand alone electronic lock with RFID technology.

12. High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.

13. Hidden cylinder,Stainless steel handle with brushed surface.3-point stainless steel latch construction with anti friction mechanism.

14. Mortise equipped 20mm throw high strength deadbolt.

15. Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.

16. ADA compliant (guest with physical disabilities).

17. Warranty: 2 years, lifetime maintenance

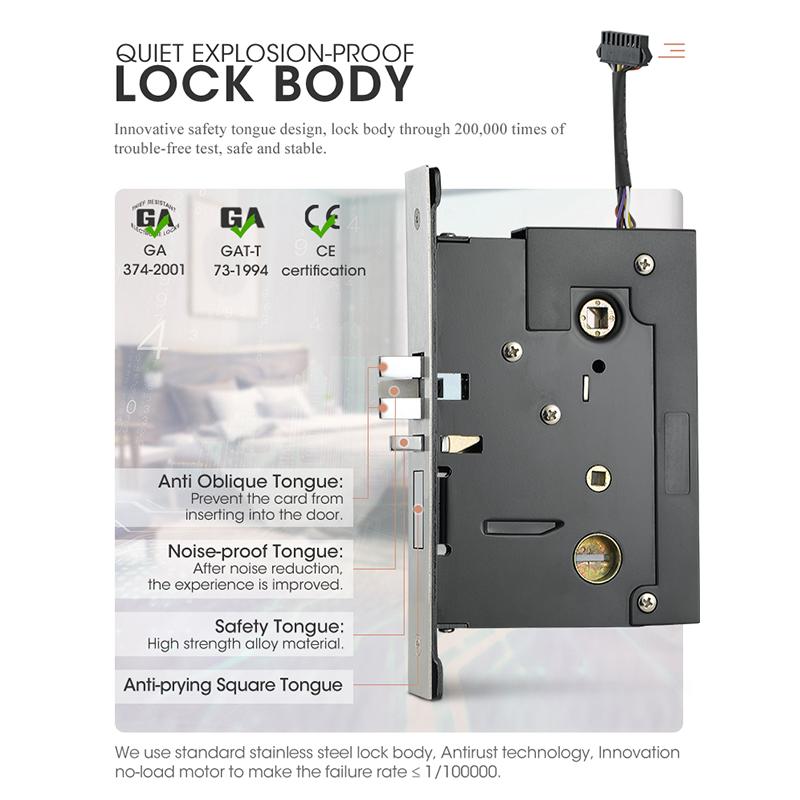

Mortise:

1.8# ANSI standard,five lock tongue three linkage lock body

2.9# Euro stand,five lock tongue three linkage lock body

Packing:

Each piece packed in white box
6PCS/CTN
17~19kg/CTN
Carton size: L410 x W340 x H510 (mm)
Volumes: 0.07 m3 / ctn
